1. a2z Full height transit barrier

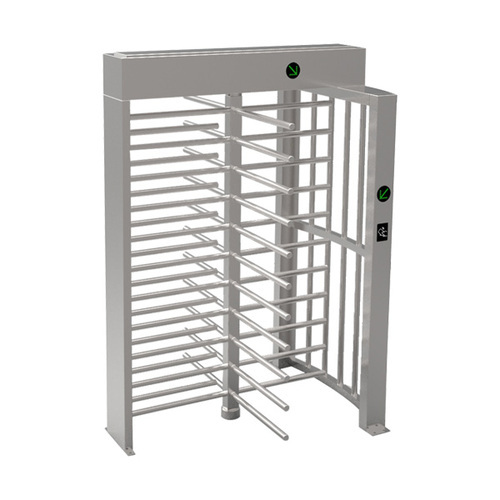

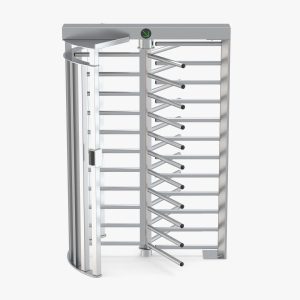

      a2z Full height transit barrier


Full height turnstile is designed to provide entry access control solutions in places that need high security.
The system is single-door type.

It’s used for both indoor and outdoor, as whole body is made of finished which is waterproof, anti-corrosion and rigid.

Arm is 120° rotors or 90°rotors for select.

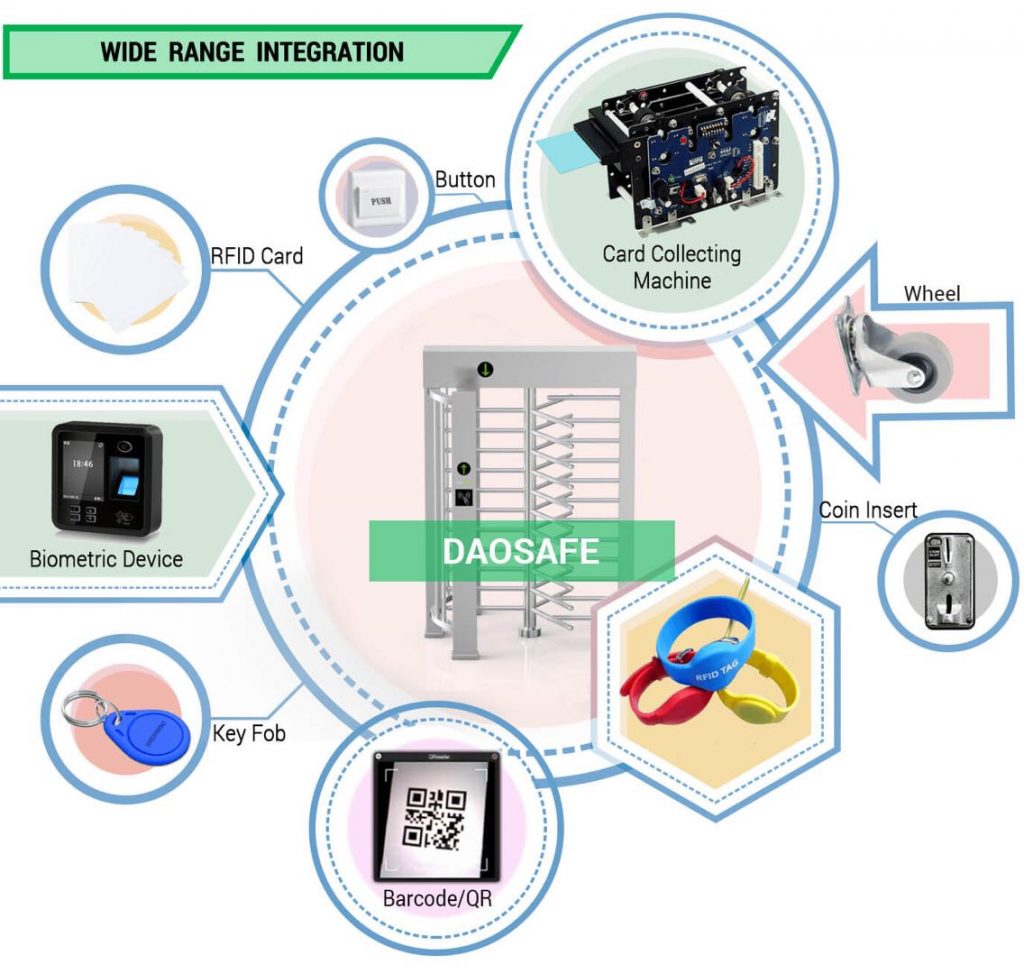

It’s with enough space availability to firmly embed the access control device (e.g.: RFID, fingerprint device, display, counter, push button ).
Long-life performance, high operation dependability and fast response, Bi-directional is selectable
Automatic reset function: turnstile arm will lock automatically within 5s (can be setting) if passenger delay to entry
Anti-tailing function: only one person passes at one time
When power is off, arms will open automatically, which is complying with fire safety requirements
LED indicator (red × means no entry; green → means entry)
Structure of trunking to contain cable tidy inside the case
when power failure, support to control open and close by manual
Easy to install and maintain
3-year warranty support
Product Details and Dimensions

All the details and dimensions can be customized according to your project site

Technical Features :-Frame work Material 304 Full Stainless Steel
Dimension 1630 * 1337* 2240mm
Weight 200kg/pcs
Passage Width 690mm
Arm Support 120° rotors with 3 sections or 90° rotors with 4 sections
Passing Direction Single directional / Bi-directional
Power Supply AC220V/ 50Hz
Operation Voltage:- 24V DC
Power Consumption :- 40W.


Band- Osaka
Working Environment Indoor / Outdoor
Flow Rate 35-40 people per minute
Emergency Automatic arm open when power off

a2z Full height transit barrier
